RS5 - T16 Touring Car Front Center Roll-Bar Wishbone

New 2016 version of front wishbone with center axis ball anti-roll bar. We moved the front anti-roll bar in the centerline of the wishbone to reduce dynamic droop change during suspension movement. When anti-roll bar mounted on the top of the wishbone (like on the T15 and many other brands car), during suspension movement the left and right side droops are changing and making the car different in left and right hand corners.

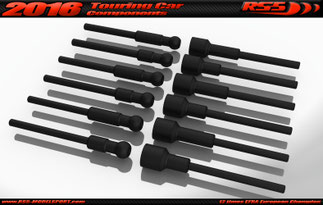

Anti-Roll Bars



We offer six different hardness of front anti roll bars to provide a wide range of setup possibilities.

Part Nr.: 30520 5mm short neck roll-bar set
Part Nr.: 30530 – 5mm long neck roll-bar set
Part Nr.: 30540 – 5.5mm short neck roll-bar se
Part Nr.: 30550 – 5.5mm long neck roll-bar set
Part Nr.: 30560 – 6mm short neck roll-bar set
Part Nr.: 30570 – 6mm long neck roll-bar set

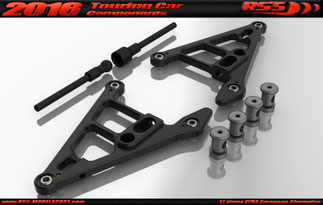

Part Nr.: 19111 Upgrade Kit



This Center Roll-Bar Front Wishbone Upgrade kit Includes the following components:

Part Nr.: 30155 – Left front lower wishbone
Part Nr.: 30156 – Right front lower wishbone
Part Nr.: 30515 – Mounting for 6mm roll-bar (4pz)
Part Nr.: 30560 – 6mm short neck roll-bar

Part Nr.: 19113 Upgrade Kit Full



This Center Roll-Bar Front Wishbone Upgrade kit Includes the following components:

Part Nr.: 30155 Left front lower wishbone
Part Nr.: 30155 Right front lower wishbone
Part Nr.: 30513, 30514, 30515 – All roll-bar Mountings
Part Nr.: 30520, 30530, 30540, 30550, 30560 30570

All roll-bars

When the anti-roll bar mounted in center line of the wishbone (center of rotation) then the left and right side droops stay equal. The wishbone made of 7075-T6 alloy and has zero play Steel/Brass hybrid ball joints. The anti-roll bar stiffness can be adjusted easily by slide in or out its inside holder, our changing the six different hardness anti-roll bars. The new front lower wishbone is standard on the T16 and Tx16cars and compatible with the T15 car.

Anti-Roll Bar Mounting



We have three different types of Anti-roll bar Mounting for our three different thickness Anti-roll bar (4pz).

Part Nr.: 30513 – Mounting for 5mm roll-bar
Part Nr.: 30514 – Mounting for 5.5mm roll-bar
Part Nr.: 30515 – Mounting for 6mm roll-bar

Part Nr.: 19112 Upgrade Kit Extended



This Center Roll-Bar Front Wishbone Upgrade kit Includes the following components:

Part Nr.: 30155 Left front lower wishbone
Part Nr.: 30155 Right front lower wishbone
Part Nr.: 30513, 30514, 30515 – All roll-bar Mountings
Part Nr.: 30520, 30540, 30560 – All short neck roll-bars
